Description

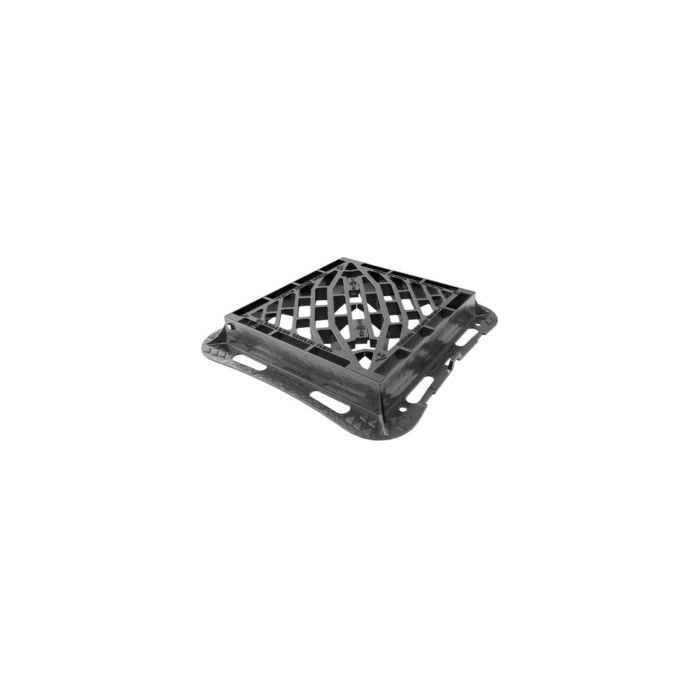

The Wrekin D400 Gully Grating is engineered for superior performance, featuring the innovative Wrekin Tri-Way system, which combines captive hinges and double triangular seating for a secure and seamless fit. Ideal for urban traffic or industrial areas, this grating delivers robust drainage solutions while ensuring security and ease of maintenance.

Constructed to endure, the Wrekin D400 Tri-Way Gully Grating meets EN124 D400 Group 3 and 4 standards, along with HA104/09 compliance. The enlarged frame corners and non-rock design enhance durability, contributing to a longer service life and making it a smart choice for infrastructure projects.

Features & Benefits:

  • Innovative Wrekin Tri-Way system.
  • Captive hinges minimize theft risk and allow for easy lifting.
  • Compliant with EN124 D400 Group 3 and 4, and HA104/09 regulations.
  • Suitable for Group 4 traffic types when installed next to a kerb.
  • Enlarged frame corners for load dissipation and improved reliability.
  • Mechanical and keyway lifting points for safe handling.
  • Reversible hinge for alignment with traffic flow, enhancing safety.
  • Non-rock design for added stability.
  • Weight Class: D400
  • Flanges: 4
  • Waterway Area: 2150 cm²
  • Dimensions: 600 x 600 x 100mm
  • Seating Depth: 52mm
  • Depth of Insertion: 82mm
    Specification
    Weight 65.80 kg
    Manufacturer Code DGHT0D4/6060/KH4F
    Brand Wrekin
    Material Metal
    Material Type Ductile Iron
    Range Highway
    Shape Square
    Type Gully grate
    Length 600mm
    Thickness 100mm
    Width 600mm
