Description

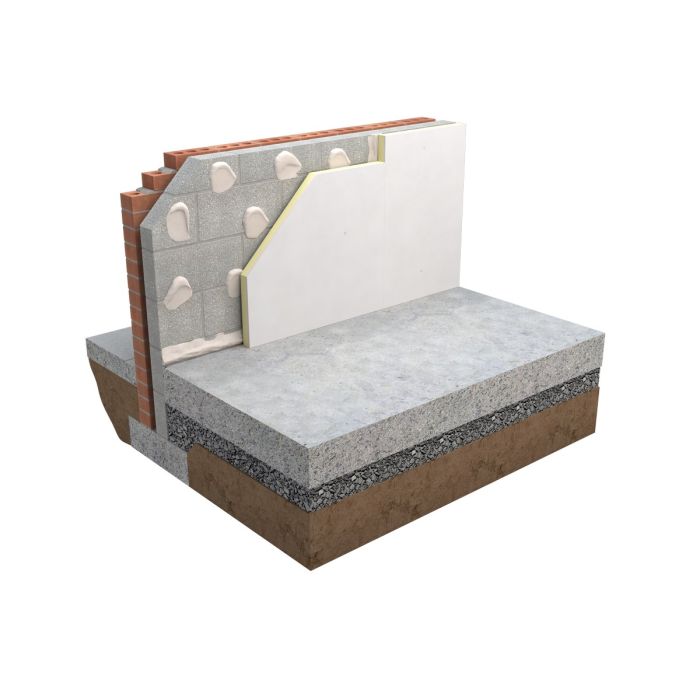

Enhance your home's energy efficiency with the Unilin Thermal Liner PIR Insulated Plasterboard. This advanced composite panel combines a Unilin PIR insulation core with 12.5mm tapered-edge plasterboard, offering a seamless solution for drylining and insulation in a single, easy installation—ideal for both new builds and renovations.

Featuring high levels of thermal insulation, the Unilin Thermal Liner is a cost-effective choice for refurbishment projects as well as new constructions. The composite kraft facing on both sides incorporates an integral vapor control layer to help minimize the risk of condensation. This high-performance product is suitable for various wall types and boasts a certified thermal conductivity as low as 0.022 W/mK, ensuring your home remains warm and energy-efficient year-round.

Features & Benefits:

  • High-performance foil-faced polyisocyanurate (PIR) insulation.
  • 12.5mm tapered-edge plasterboard designed for internal applications.
  • Combines high thermal insulation and drylining in one operation.
  • Reduced insulation thickness for added space-saving benefits.
  • A cost-effective solution for both new builds and refurbishments.
  • Integral vapor control layer to minimize condensation risks.
  • Suitable for dot-and-dab applications.
  • Proprietary adhesive bonding ensures a secure fit, leading to reduced energy costs and improved living conditions.
  • Certified thermal conductivity as low as 0.022 W/mK.
  • Fire Rating: A1 and non-combustible according to BS EN 13501-1.
  • Coverage: 2.88m² per sheet.
  • Composite kraft facing with an integral vapor control layer to further reduce condensation risks.

Specifications:

  • Size: 2400mm x 1200mm x 72.5mm.

    Specification
    Weight 33.96 kg
    Manufacturer Code XT/TLDD/072.5/GYP12.5/SP06
    Brand Unilin Insulation
    Dimensions (Imperial) 8ft x 4ft
    Material Type Foil/Plasterboard
    Shape Tapered Edge
    Length 2400mm
    Thickness 72.5mm
    Width 1200mm
