Description

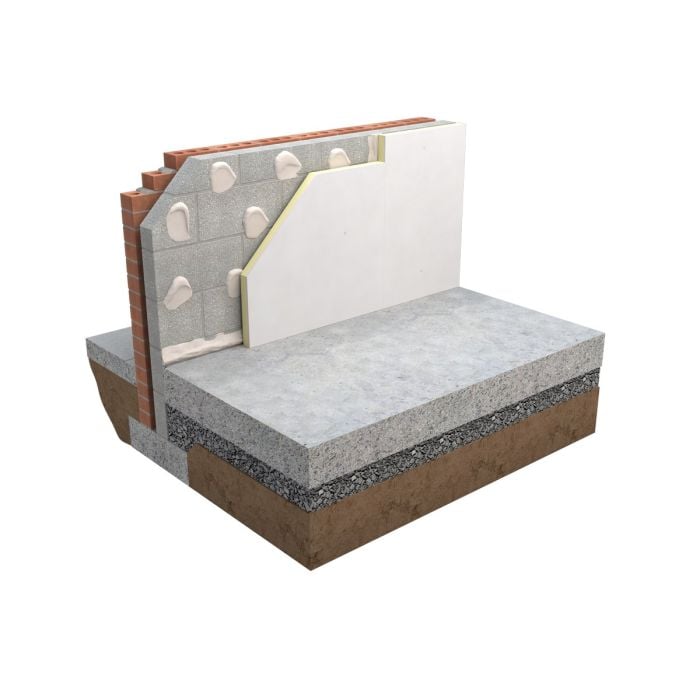

Boost your home's energy efficiency with Unilin Thermal Liner PIR Insulated Plasterboard, an innovative composite panel that combines a Unilin PIR insulation core with 12.5mm tapered edge plasterboard. Designed for internal use, it provides both drylining and insulation in a single, easy installation, making it ideal for new builds and renovations alike.

Offering exceptional thermal insulation, the Unilin Thermal Liner is a cost-effective choice for both refurbishment projects and new constructions. Its composite kraft facing on both sides includes an integral vapour control layer to minimize condensation risk. Suitable for various wall types, this high-performance panel boasts a certified thermal conductivity as low as 0.022 W/mK, ensuring your home stays warm and energy-efficient year-round.

Features & Benefits:

  • High-performance foil-faced PIR insulation
  • 12.5mm tapered edge plasterboard for internal use
  • Combines thermal insulation and drylining in one step
  • Space-saving with reduced insulation thickness
  • Cost-effective for both new builds and refurbishments
  • Integral vapour control layer to reduce condensation risk
  • Suitable for dot and dab application
  • Proprietary adhesive bonding for secure fit, reducing energy costs and improving comfort
  • Certified thermal conductivity as low as 0.022 W/mK
  • Fire Rating: A1 and non-combustible to BS EN 13501-1
  • Coverage: 2.88m² per sheet
  • Composite kraft facing with vapour control layer to reduce condensation risks

Specifications:

  • Size: 2400mm x 1200mm x 62.5mm

    Specification
    Weight 33.02 kg
    Manufacturer Code XT/TLDD/062.5/GYP12.5/SP06
    Brand Unilin Insulation
    Dimensions (Imperial) 8ft x 4ft
    Material Type Foil/Plasterboard
    Shape Tapered Edge
    Length 2400mm
    Thickness 62.5mm
    Width 1200mm
