Description

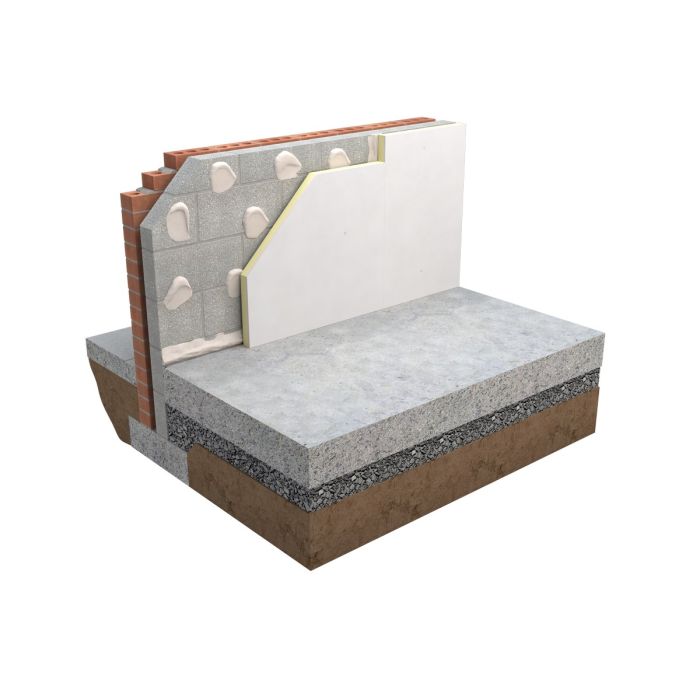

Improve your home's energy efficiency with the Unilin Thermal Liner PIR Insulated Plasterboard. This advanced composite panel combines a Unilin PIR insulation core with a 12.5mm tapered edge plasterboard, offering an all-in-one solution for drylining and insulation in internal applications. Whether you're renovating or building new, it provides a seamless and efficient installation process.

With superior thermal insulation, the Unilin Thermal Liner is a cost-effective choice for both new builds and refurbishments. The composite kraft facing on both sides features an integral vapour control layer to help reduce the risk of condensation. Suitable for various wall types, this high-performance product boasts a certified thermal conductivity as low as 0.022 W/mK, ensuring a warm, energy-efficient home all year round.

Features & Benefits:

  • High-performance foil-faced PIR insulation
  • 12.5mm tapered edge plasterboard for internal use
  • Combines thermal insulation and drylining in a single step
  • Space-saving with reduced insulation thickness
  • Cost-effective for both new builds and renovations
  • Integral vapour control layer minimizes condensation risk
  • Suitable for dot and dab application
  • Proprietary adhesive bonding for a secure fit
  • Certified thermal conductivity as low as 0.022 W/mK
  • Fire Rating: A1 and non-combustible (BS EN 13501-1)
  • Covers 2.88m² per sheet
  • Composite kraft facing with built-in vapour control layer

Specifications:

  • Size: 2400mm x 1200mm x 50.5mm

    Specification
    Weight 31.90 kg
    Manufacturer Code XT/TLDD/050.5/GYP12.5/SP06
    Brand Unilin Insulation
    Dimensions (Imperial) 8ft x 4ft
    Material Type Foil/Plasterboard
    Shape Tapered Edge
    Length 2400mm
    Thickness 50.05mm
    Width 1200mm
