Description

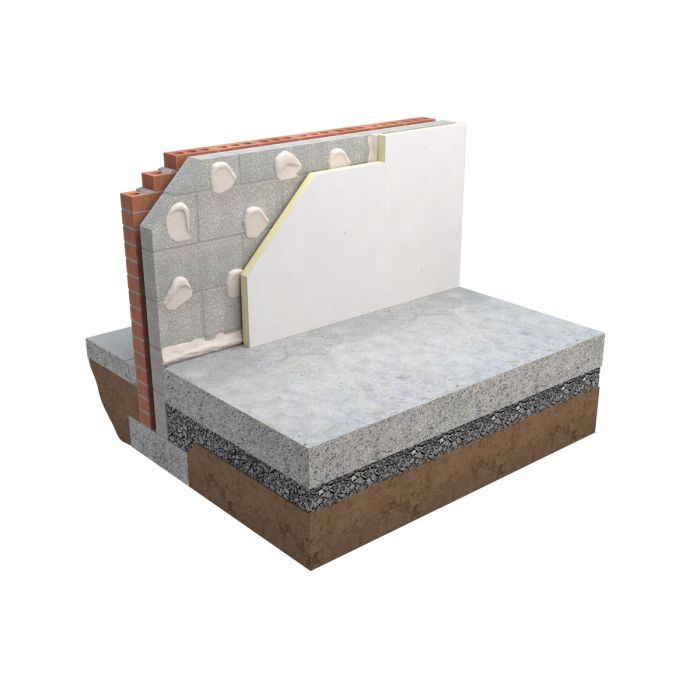

Boost your home's energy efficiency with the Unilin Thermal Liner PIR Insulated Plasterboard. This advanced composite panel combines a Unilin PIR insulation core with a 12.5mm tapered edge plasterboard, providing a seamless solution for internal drylining and insulation. Whether you're renovating or building new, this product simplifies installation by combining two functions in one.

The Unilin Thermal Liner offers high thermal insulation, making it a cost-effective choice for both new builds and refurbishments. Its composite kraft facing on both sides includes an integral vapour control layer, helping to reduce condensation risks. Suitable for a variety of wall types, this high-performance board delivers certified thermal conductivity as low as 0.022 W/mK, ensuring a warm and energy-efficient home year-round.

Features & Benefits:

  • High-performance foil-faced PIR insulation
  • 12.5mm tapered edge plasterboard for internal applications
  • Excellent thermal insulation and drylining in a single process
  • Reduced insulation thickness saves space
  • Cost-effective for new builds and refurbishments
  • Integral vapour control layer minimizes condensation risk
  • Suitable for dot and dab application
  • Proprietary adhesive bonding ensures secure fitting, lowering energy costs
  • Thermal conductivity as low as 0.022 W/mK
  • Fire rating: A1, non-combustible (BS EN 13501-1)
  • Coverage: 2.88m² per sheet
  • Composite kraft facing with vapour control layer

Specifications:

  • Size: 2400mm x 1200mm x 37.5mm

    Specification
    Weight 30.68 kg
    Manufacturer Code XT/TLDD/037.5/GYP12.5/SP06
    Brand Unilin Insulation
    Dimensions (Imperial) 8ft x 4ft
    Material Type Foil/Plasterboard
    Product Category Plaster & Boards
    Shape Tapered Edge
    Length 2400mm
    Thickness 37.5mm
    Width 1200mm
