Description

The Timloc Invisiweep Concealed Wall Weep Vent is an ideal choice for discreetly managing water discharge from external masonry walls. This innovative weep vent is designed to seamlessly integrate with your wall, ensuring that its functionality does not interfere with the building’s aesthetics.

Its external ribs and tapered profile provide a secure fit in the mortar, while the full-height upstand on the cavity side enhances drainage and reduces the risk of blockages caused by cavity cement build-up. The integral 4mm vermin barrier and rainwater baffle effectively prevent large insects, mammals, and rainwater from entering the cavity.

Features & Benefits:

  • Efficiently discharges water from external walls while maintaining a discreet appearance.
  • Equipped with a 4mm vermin barrier and rainwater baffle.
  • Features external ribs and a tapered profile for secure mortar installation.
  • Includes a full-height upstand on the cavity side to ensure effective drainage and minimize blockages.
  • Utilizes a Venturi effect outlet tube to reduce pressure and enhance water drainage.
  • Made from durable injection-moulded polypropylene.
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001 standards.
  • Complies with British standards BS5250, BS8000, BS5628, and BS8215.
  • Meets all relevant building regulations and NHBC requirements.

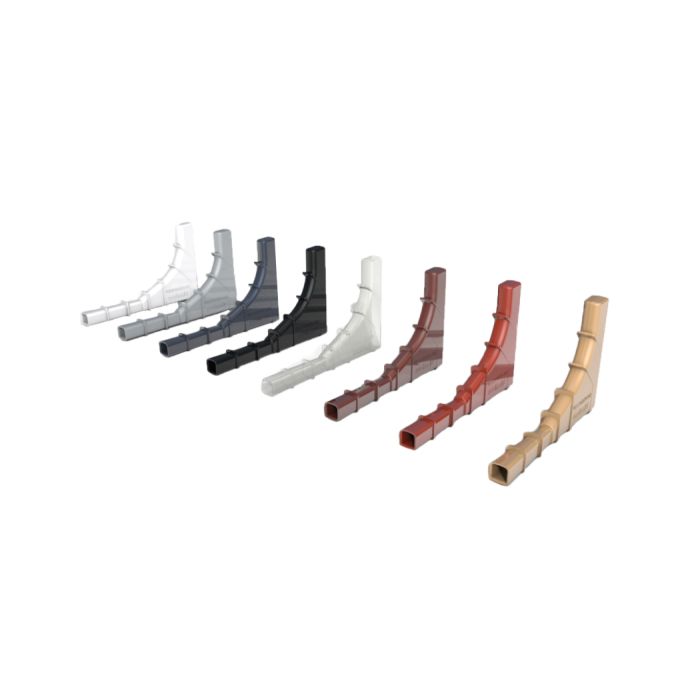

  • Available in five colours: Black, Buff, Clear, Grey, and Terracotta.
  • Colour Supplied: Grey

    Specification
    Weight 0.01 kg
    Manufacturer Code IW50GR
    Brand Timloc
    Colour Grey
    Material Plastic
    Pack Quantity 50
    Vent Type Concealed
    Height 65mm
    Length 102mm
    Width 10mm
