Description

The Timloc Invisiweep Concealed Wall Weep Vent is the ideal solution for discreetly managing water drainage from external masonry walls. This innovative vent is designed to seamlessly blend with your wall, ensuring that its functionality does not compromise the aesthetics of your building.

With external ribs and a tapered profile, the vent is securely anchored into the mortar. The full-height upstand on the cavity side promotes effective drainage while minimizing the risk of blockages from cavity cement buildup. Additionally, the integral 4mm vermin barrier and rainwater baffle work together to prevent large nesting insects, mammals, and rainwater from entering the cavity.

Features & Benefits:

  • Multi-functional design for effective water discharge from external walls.
  • Integral 4mm vermin barrier and rainwater baffle.
  • External ribs and tapered profile ensure secure mortar fixing.
  • Full-height upstand on the cavity side maintains drainage and reduces blockages.
  • Discreet water outlet minimizes visibility.
  • Venturi effect outlet tube reduces pressure and optimizes drainage.
  • Injection-moulded from durable polypropylene.
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001 standards.
  • Complies with British standards: BS5250, BS8000, BS5628, BS8215.
  • Meets all relevant building regulations and NHBC requirements.

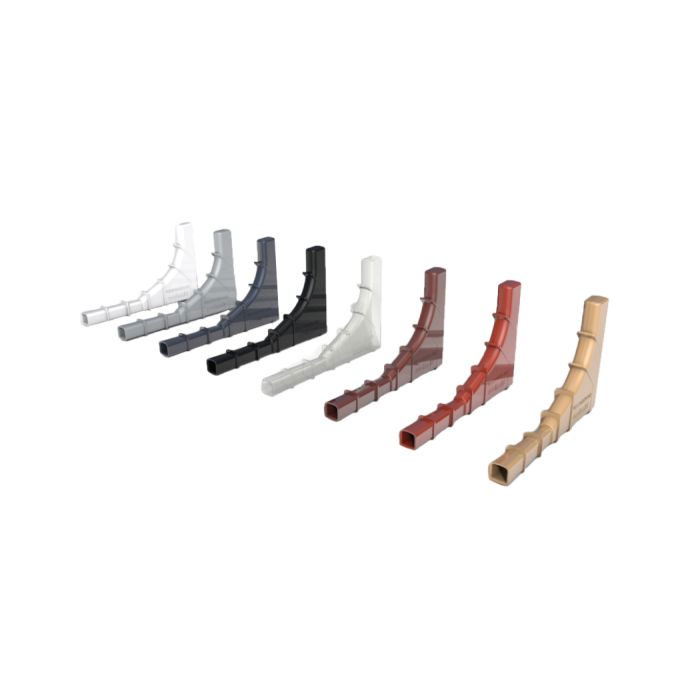

  • Available in five colors: Black, Buff, Clear, Grey, and Terracotta.

Color Supplied: Buff

Specification
Weight 0.01 kg
Manufacturer Code IW50BU
Brand Timloc
Colour Buff
Material Plastic
Pack Quantity 50
Vent Type Concealed
Height 65mm
Length 102mm
Width 10mm
