Description

Introducing the Timloc Cavity Wall Weep Vent, an essential solution for cavity ventilation and effective water discharge from cavity walls. Ideal for various installation scenarios, including over external lintels or within cavity tray systems, this vent is designed to fit walls of 100mm thickness or more, whether constructed from brick, block, or stone, ensuring optimal dryness and ventilation for your structures.

The Timloc Weep Vent is engineered for performance with a pre-formed design that ensures reliable water discharge and reduces the risk of accidental pointing-up compared to traditional methods. It also features an integral front grille that prevents large nest-building insects from entering the cavity.

Features & Benefits:

  • Suitable for installation at ground floor slab level, within cavity tray systems, over external lintels, and other cavity ventilation needs.
  • Effective for external walls with a thickness of 100mm or more.
  • Purpose-built and pre-formed for dependable cavity ventilation and water discharge.
  • Includes an integral front grille to block large nest-building insects.
  • Designed to be placed directly on top of the cavity tray base or DPC, or on the front flange of the lintel.
  • Meets all NHBC requirements.
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001 standards.
  • Complies with all relevant Building Regulations.
  • Made from injection-moulded, UV-stabilized polypropylene for durability.

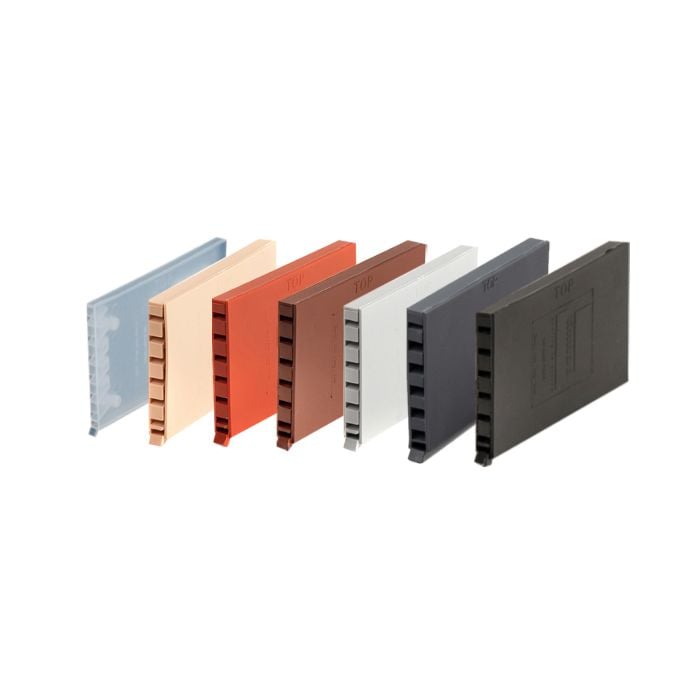

  • Available in various colours: Black, Buff, Clear, Grey, Terracotta, or Blue/Black.

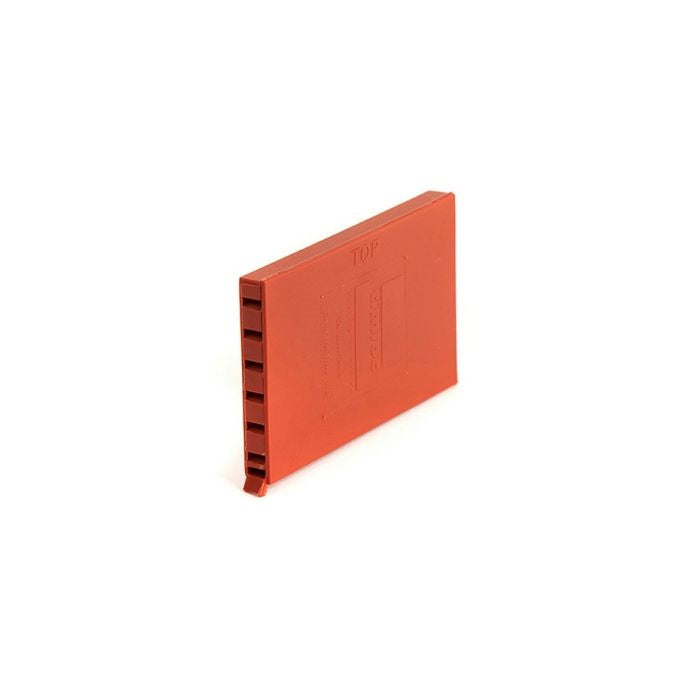

  • Colour: Terracotta
  • Dimensions: 65 x 10 x 100mm

    Specification
    Weight 1.00 kg
    Manufacturer Code 1143TE
    Brand Timloc
    Colour Terracotta
    Material Plastic
    Vent Type Cavity Wall
    Height 65mm
    Length 102mm
    Width 10mm
