Description

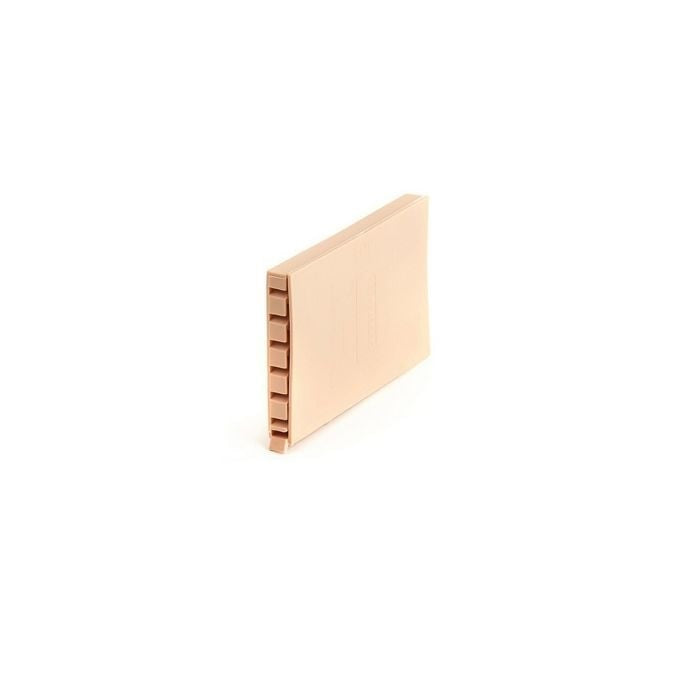

Introducing the Timloc Cavity Wall Weep Vent, an essential solution for effective cavity ventilation and water discharge from cavity walls. Designed to meet a variety of installation needs, this versatile vent is suitable for use over external lintels or within cavity tray systems. It is compatible with walls of 100mm thickness or greater, whether made from brick, block, or stone, ensuring that your structures remain dry and well-ventilated.

The Timloc Weep Vent is crafted for optimal performance with a pre-formed design that ensures reliable water discharge and minimizes the risk of accidental pointing-up compared to traditional methods. Additionally, it features an integral front grille to prevent large, nest-building insects from entering the cavity.

Features & Benefits:

  • Ideal for ground floor slab levels, cavity tray systems, external lintels, and any application requiring cavity ventilation.
  • Effective for external walls with a minimum thickness of 100mm.
  • Purpose-designed and pre-formed for dependable ventilation and water discharge.
  • Integral front grille to block large nest-building insects.
  • Can be installed directly on top of the cavity tray base or DPC, or on the front flange of the lintel.
  • Meets all NHBC requirements.
  • Manufactured to BS EN ISO 9001 and BS EN ISO 14001 standards.
  • Complies with all relevant Building Regulations.
  • Made from injection-moulded, UV-stabilized polypropylene for long-lasting durability.

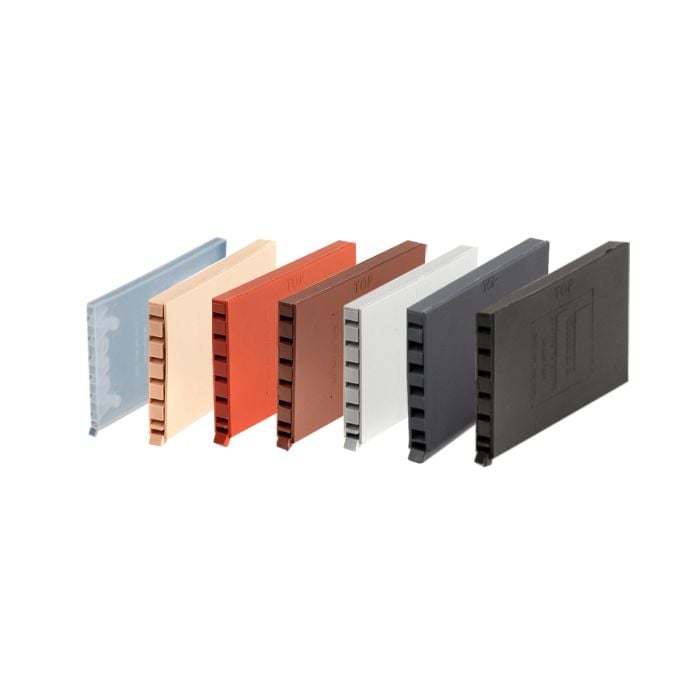

  • Available in various colours: Black, Buff, Clear, Grey, Terracotta, and Blue/Black.
  • Colour: Buff
  • Dimensions: 65 x 10 x 100mm

    Specification
    Weight 1.00 kg
    Manufacturer Code 1143BU
    Brand Timloc
    Colour Buff
    Material Plastic
    Vent Type Cavity Wall
    Height 65mm
    Length 102mm
    Width 10mm
