Description

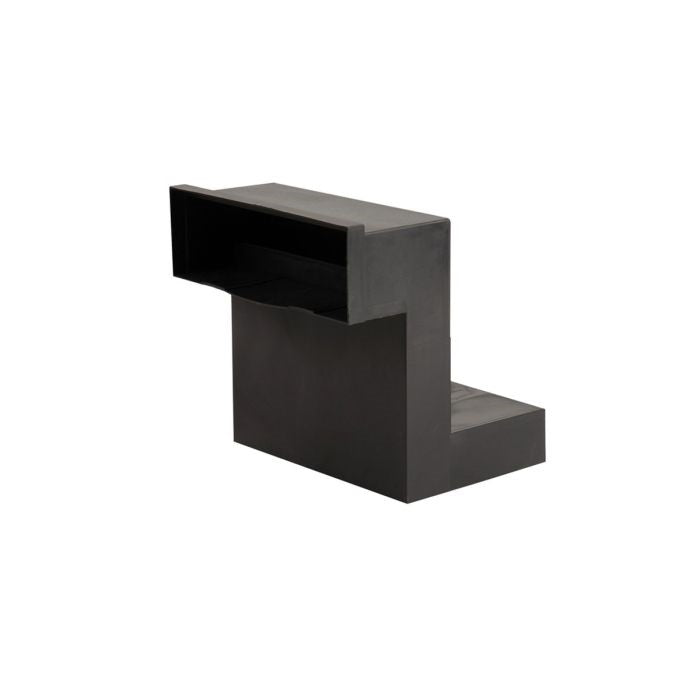

This adjustable ventilator is designed to provide effective ventilation beneath suspended ground floors, accommodating up to 5 brick courses.

Features & Benefits:

  • Adjustability: Telescopic design allows for installation at 3, 4, or 5 brick courses.
  • Ventilation Area:

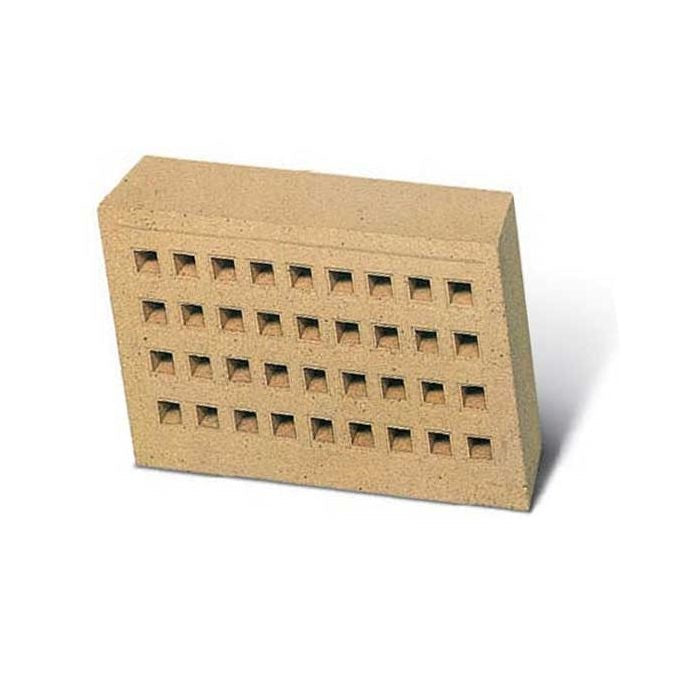

    • Offers a free area of 8000mm² per unit when installed without the 1201AB airbrick.
    • Provides a free area of 6500mm² per unit when used with the 1201AB airbrick.
    • Delivers an equivalent area of 6170mm² per unit with the 1201AB airbrick.
  • Vermin Prevention: Includes a specialized grille to prevent vermin entry.
  • Compliance: Meets NHBC standards and all relevant Building Regulations.
  • Quality Assurance: Manufactured to BS EN ISO 9001 and BS EN ISO 14001 standards.
  • British Standards: Complies with all relevant British Standards.
  • Material: Made from UPVC using an extrusion process.

    Specification
    Weight 0.45 kg
    Manufacturer Code 1201
    Brand Timloc
    Brickwork Ventilation Type Telescopic Vent
    Colour Black
    Material Plastic
    Height 225mm
    Length 220mm
    Thickness 450mm
    Width 205mm
