Description

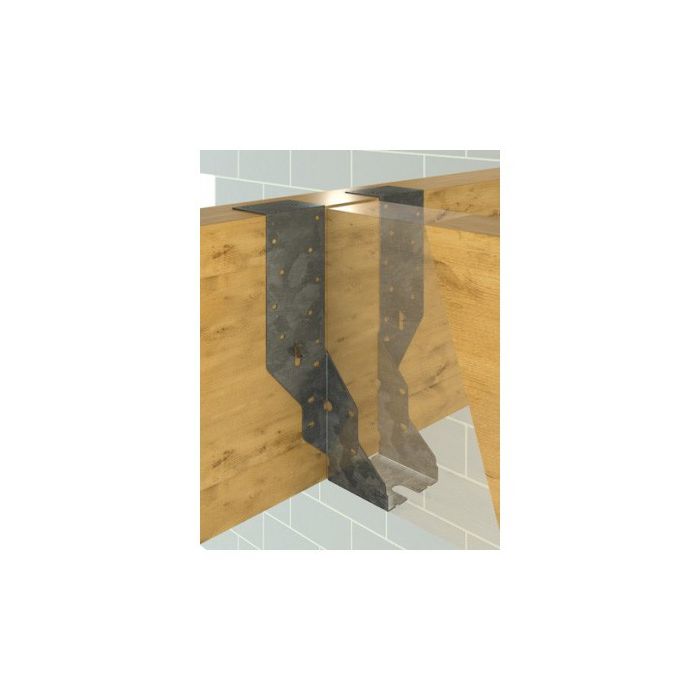

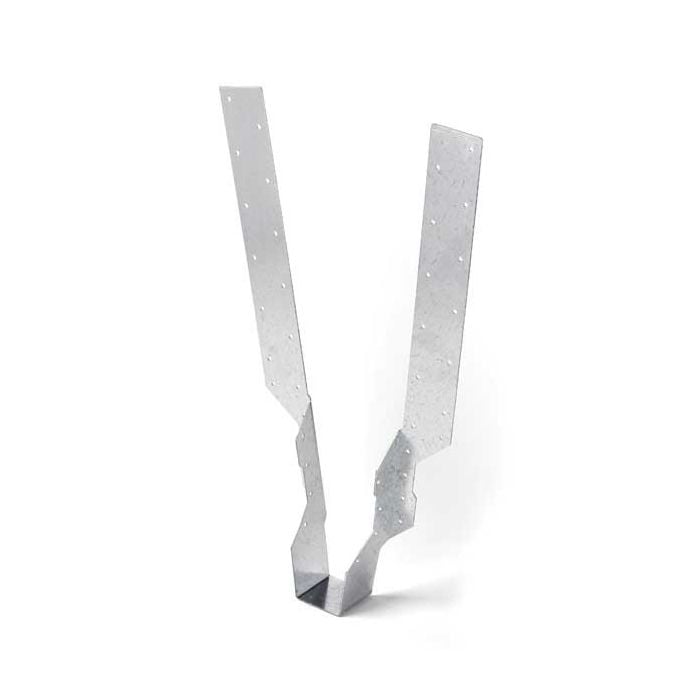

Introducing the Timber to Timber Joist Hanger, a strong and reliable solution for connecting timber with excellent stability. Made from a single piece of high-quality steel, this medium-duty joist hanger is designed to handle a wide range of construction tasks. Available in multiple sizes, it offers a perfect fit for various joist depths, making it a versatile tool for both new builds and renovation projects.

Built to the highest standards, this joist hanger features a 50mm bearing surface and pre-punched holes for easy installation. The 1.2mm thick pre-galvanized steel ensures long-lasting durability and resistance to corrosion. With a safe working load of 7.00kN, this hanger is ideal for standard construction and loft conversions, providing a secure and stable connection.

Features & Benefits:

  • Suitable for joist depths up to 250mm.
  • 50mm strap legs for versatile installation.
  • Made from 1.2mm thick pre-galvanized steel for durability.
  • 50mm bearing surface
    for strong support.
  • Requires 30 x 3.75mm sherardized square twist nails.
  • Side gusset holes for attaching to timber joists.
  • Maximum 75mm drop, ideal for loft conversions.
  • Safe Working Load: 7.00kN.
  • Type: Medium Duty.
  • Leg: Standard.
  • Size: 150mm.

    Specification
    Weight 0.76 kg
    Manufacturer Code JHSTDMT340/150
    Brand Catnic
    For Joist Width 150mm-250mm
    Length 276mm
    Width 150mm
    For Fixing Material Timber to Timber
