Description

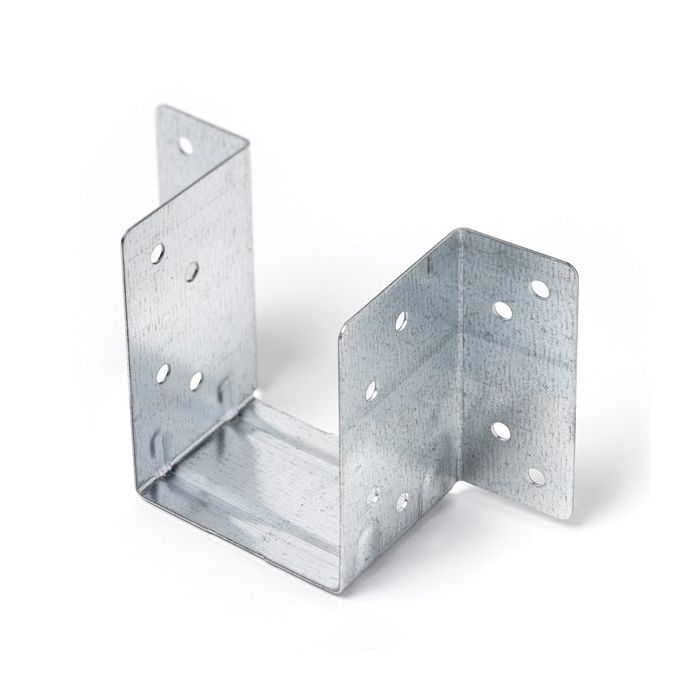

Made from a single piece of pre-galvanized steel, this joist hanger offers durable, long-lasting performance and resistance to wear. The steel adheres to the rigorous BS EN 10346:2009 + G275 specifications, ensuring high quality and industry compliance.

Designed with a 50mm bearing surface and pre-punched holes, it requires 30 x 3.75mm sherardized square twist nails for secure installation. Ideal for both new builds and renovation projects, it provides a reliable and efficient solution.

Features & Benefits:

  • Manufactured from 0.9mm thick pre-galvanized steel.
  • Suitable for joist depths between 150-250mm.
  • 50mm wide strap legs with increased nail spacing.
  • 50mm bearing surface.
  • Requires 30 x 3.75mm sherardized square twist nails.
  • Complies with BS EN 10346:2009 + G275 specifications.
  • Safe Working Load: 5.87kN.
  • Type: Light Duty.
  • Leg: Standard.
  • Size: 47mm.

    Specification
    Weight 0.19 kg
    Manufacturer Code JHSTDLT270/47
    Brand Catnic
    For Joist Width 47mm
    Product Category Brackets & Hangers
    Length 272mm
    Width 47mm
    For Fixing Material Timber to Timber
