IG L7/50 Standard Structural Steel Lintel - 1350mm

Description

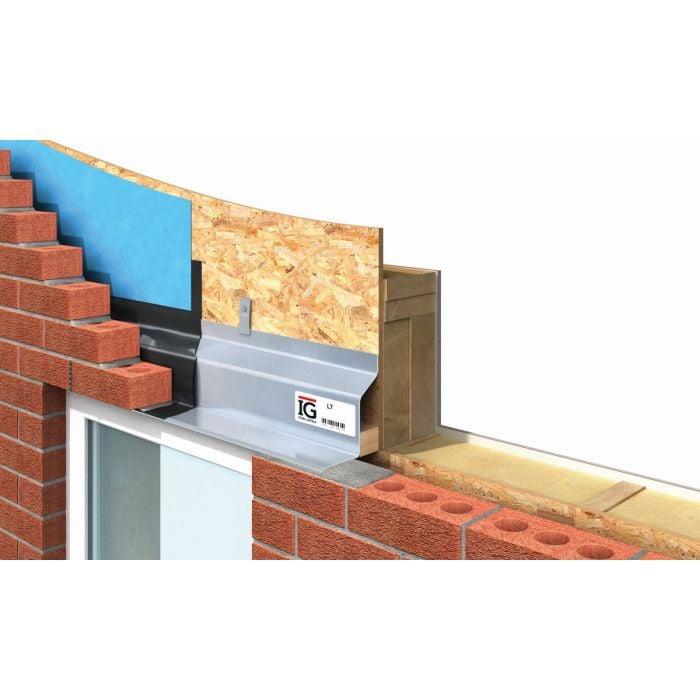

Introducing the IG L7/50 Standard Structural Steel Lintel, a reliable solution for timber frame construction projects. This durable 1350mm lintel is engineered to support standard loads, ensuring both structural integrity and longevity. Whether you're a professional contractor or a DIY enthusiast, this lintel combines high performance with ease of use, streamlining your construction process.

Designed specifically for timber frame builds, the L7/50 lintel must be used with lateral restraint clips and a tight-fitting timber batten to prevent twisting. Its high-quality steel construction supports propping, accelerating the construction process while providing the strength and flexibility needed for your project.

Key Features & Benefits:

• Compatible with timber frame construction
• Suitable for standard load applications
• Requires lateral restraint clips and a tight-fitting timber batten
• Enables faster construction when propped
• Steel thickness: 2mm
• Cavity range: 50-65mm
• Outer leaf width: 102mm
• Inner leaf width: 100-150mm
• Height: 110mm
• Length: 1350mm



  Specification

  Weight	5.96 kg
  Manufacturer Code	IL75135
  Brand	IG Lintels
  Length (Imperial)	4ft 6in
  Thickness (Imperial)	5in
  Type	Standard Lintels
  Width (Imperial)	7in
  Length	1350mm
  Thickness	110mm
  Width	153mm
