IG L1/S 110 Standard Structural Steel Lintel - 1200mm

Description

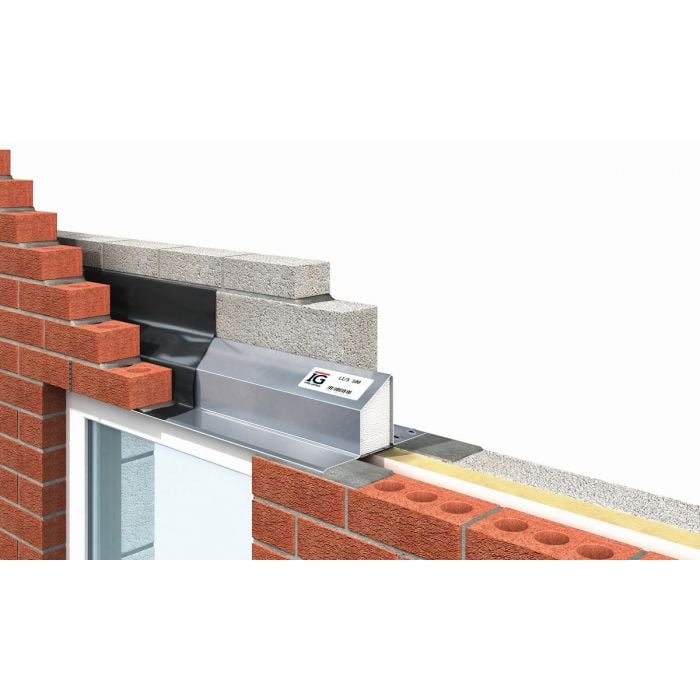

Introducing the IG L1/S 110 Standard Structural Steel Lintel, a strong and dependable solution for supporting standard load openings. Measuring 1200mm, this lintel is designed for construction projects that require cavity widths between 110-125mm, ensuring stability and durability for your architectural needs. Engineered with precision, it is an essential addition to any builder's toolkit, providing peace of mind and structural integrity.

The IG L1/S 110 Lintel offers exceptional practicality and effectiveness, delivering reliable support. It includes a minimum end bearing of 150mm on each side, features an outer leaf of 102mm and an inner leaf of 100mm, and has a height of 97mm with a steel thickness of 2mm, guaranteeing both strength and longevity.

Features & Benefits:

• Designed for standard load applications.
• Suitable for both residential and commercial projects.
• Crafted from high-quality, durable steel.
• Steel thickness: 2mm.
• Minimum end bearing: 150mm on each side.
• Supports cavity widths of 110-125mm.
• Outer leaf dimension: 102mm.
• Inner leaf dimension: 100mm.
• Height: 97mm.
• Length: 1200mm.



  Specification

  Weight	9.46 kg
  Manufacturer Code	IS1112
  Brand	IG Lintels
  Length (Imperial)	4ft
  Thickness (Imperial)	4in
  Type	Standard Lintels
  Width (Imperial)	1ft
  Length	1200mm
  Thickness	95mm
  Width	300mm
